Supplying power to the healthcare industry and beyond

The number one power extension solution for hospitals and medical facilities.
APC Group, Inc. the manufacturer of the Medreel, is the leading designer, developer, manufacturer and supplier of Watertight Indoor / Outdoor Retractable Power Cord Reels and electrical wire and cable products for commercial, industrial, and consumer applications. With operations in the U.S. and Canada.

All of APC Group, Inc. products are manufactured and produced within the United States.

We sell and distribute our products to a variety of customers, including a wide range of electrical distributors, military, hospitals, contractors and original equipment manufacturers (“OEMs”).

More about the Medreel

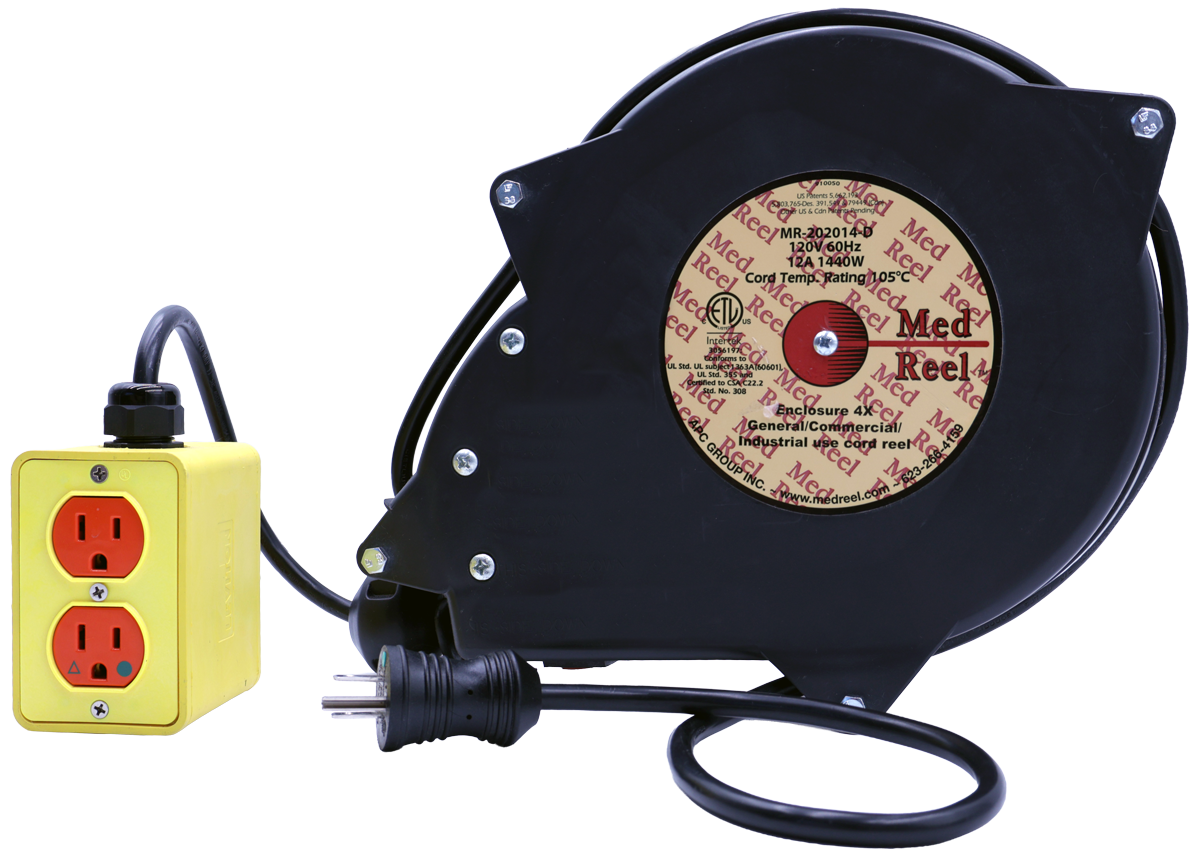

MedReel is the First Medical Grade Retractable Cord Reel

Development & Testing

Years of research and testing have gone into the creation of the Medreel

  • Green dot certified
  • ETL tested to CSA and UL Standards
  • Patented waterproof design
  • Durable polypropylene case
  • Integral Circuit Breaker
  • Water resistant Enclosure 4X rated
  • Impact Resistant

Approved for use

The design of the Medreel allows its use in in many medical settings.

  • Health Care Facilities
  • Operating Theaters
  • Veterinary Clinics
  • Blood Centers
  • Birth Centers
  • Imaging and radiology centers

Function & Features

Multiple installation options with easy, convenient operation

  • Convenient retraction mechanism
  • Flexible electric power cord management
  • Easy & fast installation
  • Retracts out of the way when not in use
  • Can be ceiling, wall or cart mounted
  • Stays plugged into the wall

Product Specifications

Medreel Unit

CASE (HOUSING)

Dimensions – 9″ x 12″ x 3″
Molded Polypropylene
3.175 mm thickness
94V-0 Flammability Rating

POWER CORD

Gauge / Conductor – 14/3  or 12/3 AWG
Type – SJOW
Length – 10′ | 15′ | 20 | 30′ | 40′
Rating -57 to 200 degrees F

RECEPTACLE / PLUG

Rated-125VAC/20AMP
Receptacle – NEMA 5-15P
Plug – Dual Duplex Rated at 20 AMP

CIRCUIT BREAKER

20 AMP

Testing

EXTENSIVE TESTING DONE TO MEET STANDARDS

SAFETY IS OUR CONCERN

The MedReel had to pass a series of tests to be given the rating it needed.

  • CONFORMS TO UL LISTINGS 1363-A, 60601, 355, CSA C22.2 std No. 308

Product Features

Drop Down Power

With a MedReel you now have the ability to provide power safely and easily to almost any location without the concern of extension cords lying on the ground causing a tripping hazard.

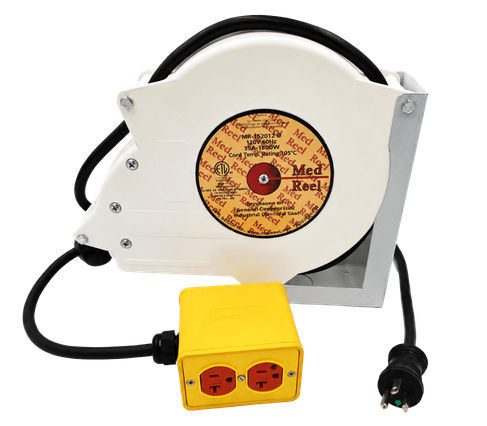

Mounting Brackets

Mounting brackets provide for an simple installation of the MedReel. The brackets have been designed for ceiling installations (MRCB) as well flat surfaces (MRMP) such as walls and pillars. The Drop ceiling plate (MRCP) is used above the tiles to provide a secure mounting point for the MRCB brackets.

Medreel Points of Importance

MedReel is the optimal retractable power cord reel for medical use

Since Medreel is the first and number one medical field
power extension solution, you know that you are in good
hands when outfitting your facility with Medreel. Have
questions, contact us by clicking below.

MedReel is Proudly made and manufactured in the United States

We take pride in our work and commitment to every
customer that we work with. Medreel was designed in the
USA, and is proudly manufactured and produced in the
USA as well.
